------ DD OBJECTS COLLECTION ------

SOLAR WIND KEY PARAMETERS

WIND SPACECRAFT

Solar Wind data base was obtained from http://cdaweb.gsfc.nasa.gov/cdaweb/sp_phys (Wind Solar Wind Experiment, K.Ogilvie). This data has about one-and-half minute resolution.
Available objects are:

WINDN - Number density [1/cm^3].
WINDVX - The Vx GSE of SW [km/s].
WINDVY - The Vy GSE of SW [km/s].
WINDVZ - The Vz GSE of SW [km/s].
WINDV - SW Velocity [km/s].
WINDP - SW ram pressure [nPa].

NOTE:
Yrange should be defined for all these objects.

Example

request file:


003
WINDN    0.05 0.00 0.9 0.15 0.00 0.00   0.0  20.0
WINDV   0.05 0.15 0.9 0.30 0.00 0.00  0.0 500.0
WINDP  0.05 0.30 0.9 0.45 0.00 0.00   0.0 10.
1996:148:16:00:00
001:00:00:00

Time delay due to finite solar wind propagation time between WIND and INTERBALL should be defined in resource file 'windcom.res' in the current working directory:


2527.        # Time Lag (sec)

NOTE:
Time Lag can be defined by delay procedure ( See Section "Other executables in DD system" for detailed description).

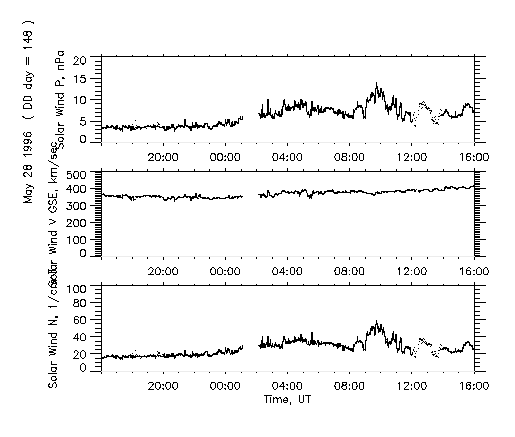

Output
