------ DD OBJECTS COLLECTION ------
ORBIT
Two minutes resolution orbital data of INTERBALL/TAIL
satellite was prepared by Dr.Victoria Prokhorenko (see also
Satellite Situation Center )
and converted to "key
prameters" style by Dr. Anatoli Petrukovitch. For INTERBALL/AURORAL 10 minutes
resolution orbital data (after V. Prokhorenko) are used.
Available objects (for TAIL) are:
-
XYGSE - Orbit projection onto XY GSE plane.
-
XZGSE - Orbit projection onto XZ GSE plane.
-
YZGSE - Orbit projection onto YZ GSE plane.
-
XYGSM - Orbit projection onto XY GSM plane.
-
XZGSM - Orbit projection onto XZ GSM plane.
-
YZGSM - Orbit projection onto YZ GSM plane.
-
XYSM - Orbit projection onto XY SM plane.
-
XZSM - Orbit projection onto XZ SM plane.
-
YZSM - Orbit projection onto YZ SM plane.
NOTE:
1.You have to specify Xrange and Yrange for above objects.
2.Each object puts hour marks along orbit if possible. The orbit
is plotted by linear extrapolation of hour points. So the
curve near pericenter will be wrong.
-
ORBLINE - The object can be used along with other versus Time objects.
ORBIT TICKS (Xgsm, Ygsm, Zgsm) are output for each Time Tick Mark.
-
AORBLINE - The same as ORBLINE but for AURORAL PROBE.
ORBIT TICKS (R, Linv, MLT) are output for each Time Tick Mark.

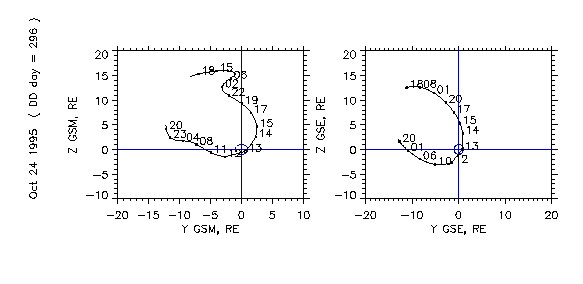

Example
request file:
002
YZGSM 0.15 0.4 0.55 0.65 -20.0 10.0 -10.0 20.0
YZGSE 0.55 0.4 0.95 0.65 -20.0 20.0 -10.0 20.0
1995:296:19:00:00
002:00:00:00
Output:
