------ DD OBJECTS COLLECTION ------

MAGNETIC FIELD PROFILES (TWO MINUTES AVERAGED)

Magnetic field data, obtained by instrument PRAM onboard INTERBALL/TAIL satellite was processed and averaged over satellite spin period by A. Petrukovitch and I. Belova (IKI RAN). This data is known as "Key Parameters".
Available objects are:

KPMB - The magnitude of spin averaged MF [nT].
KPMBx- Bx GSE of spin averaged MF [nT].
KPMGSEBy - By GSE of spin averaged MF [nT].
KPMGSEBz - Bz GSE of spin averaged MF [nT].
KPMGSMBy - By GSM of spin averaged MF [nT].
KPMGSMBz - Bz GSM of spin averaged MF [nT].

NOTE:
You have to specify Yrange for these objects.

Example

Request file:


004
KPMB      0.05 0.00 0.9 0.15 0.00 0.00   0.0  60.0
KPMBX     0.05 0.30 0.9 0.45 0.00 0.00  -40.0 40.0
KPMGSMBy  0.05 0.45 0.9 0.60 0.00 0.00  -40.0 40.0
KPMGSMBz  0.05 0.60 0.9 0.75 0.00 0.00  -40.0 40.0
1996:028:16:00:00
000:16:00:00

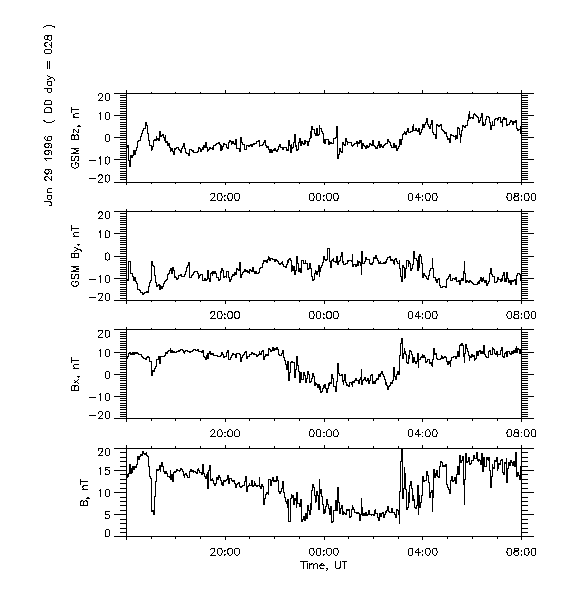

Output:

NOTE:
By and Bz components are available if the attitude data exists for given time. B and Bx are always available.
