------ DD OBJECTS COLLECTION ------

INTERPLANETARY MAGNETIC FIELD

WIND SPACECRAFT

Magnetic field data is obtained from the http://rhumba.gsfc.nasa.gov from WIND Lepping's magnetometer. This data has one-minute resolution.
Available objects are:

WINDB - The magnitude of IMF [nT].
WINDBX -The Bx GSE of IMF [nT].
WINDBYE -The By GSE of IMF [nT].
WINDBZE -The Bz GSE of IMF [nT].
WINDBYM -The By GSM of IMF [nT].
WINDBZM -The Bz GSM of IMF [nT].
WINDE_CLOCK_ANG -The angle [degrees] between the IMF projection onto YZ GSE plane and Y-axis. YRange = [-180.,180.]
WINDM_CLOCK_ANG -The angle [degrees] between the IMF projection onto YZ GSM plane and Y-axis. YRange = [-180.,180.]

NOTE:
Yrange should be defined for all these objects.

Example

request file:


004
WINDB    0.05 0.00 0.9 0.15 0.00 0.00   0.0  20.0
WINDBX   0.05 0.15 0.9 0.30 0.00 0.00  -10.0 10.0
WINDBYM  0.05 0.30 0.9 0.45 0.00 0.00  -10.0 10.0
WINDBZM  0.05 0.45 0.9 0.60 0.00 0.00  -10.0 10.0
1995:277:16:00:00
002:00:00:00

Time delay due to finite solar wind propagation time between WIND and INTERBALL is defined in resource file 'windcom.res' in current working directory:

 1760.        # Time Lag (sec)

NOTE:
Time Lag can be defined by delay procedure ( See Section "Other executables in DD system" for detailed description).

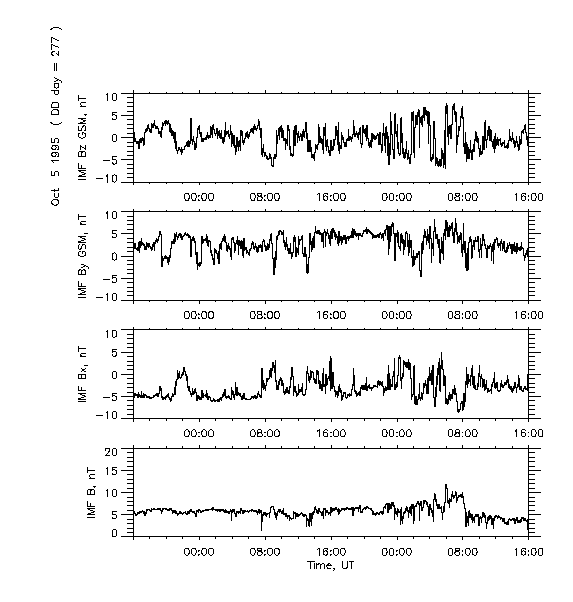

Output :
