------ DD OBJECTS COLLECTION ------
ION PARAMETERS BY CORALL
Ion parameters are calculated from 3-D ion distribution function
each spacecraft spin period equel to 118 sec.
Available objects are:
-
CRLT - Temperature in eV in logarithmic scale.
-
CRLN - Number density in 1/cm^3 in logarithmic scale.
-
CRLVX - Flow Velocity Vx GSE [km/sec]
-
CRLVYE- Flow Velocity Vy GSE [km/sec]
-
CRLVZE- Flow Velocity Vz GSE [km/sec]
-
CRLVYM- Flow Velocity Vy GSM [km/sec]
-
CRLVZM-Flow Velocity Vz GSM [km /sec]
-
CRLVYZ- Velocity sqrt(Vy^2 + Vz^2) GSE [km/sec]
NOTE:
Yrange should be defined for all these objects.
Objects CRLVYE, CRLVZE, CRLVYM, CRLVZM are available only if
attitude data are avalilable for the specified time interval.
Example:
Request file:
006
CRLT 0.05 0.0 1.0 0.15 0.0 0.0 10 10000
CRLN 0.05 0.15 1.0 0.30 0.0 0.0 0.01 10
CRLVX 0.05 0.30 1.0 0.45 0.0 0.0 -400 200
CRLVYE 0.05 0.45 1.0 0.60 0.0 0.0 -200 200
CRLVZE 0.05 0.60 1.0 0.75 0.0 0.0 -200 200
CRL3 0.05 0.75 1.0 0.90 0.0 0.0 0.0 0.0
1996:012:20:30:00
000:03:00:00

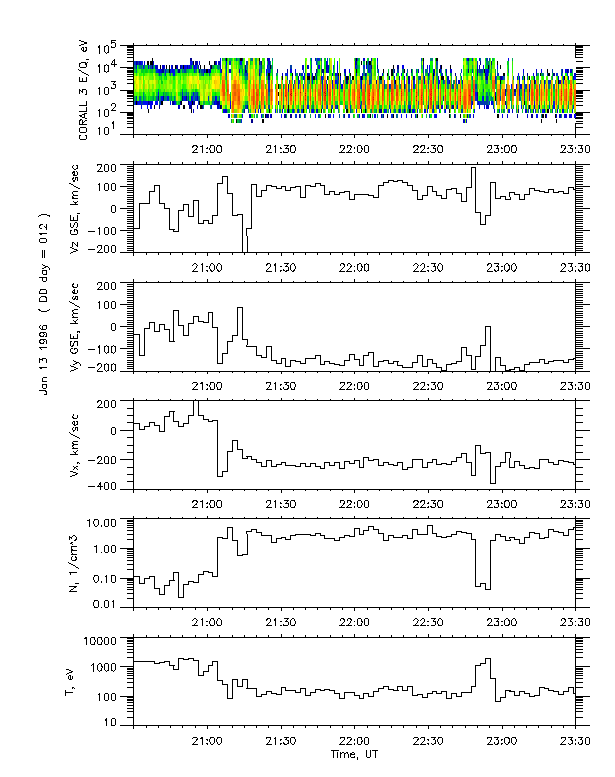

Output:
