ARROWS OBJECT

Projection of magnetic field (GSM) (Key Parameters data, 2 min averaged) and plasma flow velocity (GSM) (CORALL parameters, 2 min averaged) along INTERBALL-TAIL orbit onto different planes are shown by vectors.
Magnetic field values are in logarithmic scale and are drawn if magnitude is greater than 1 nT.
Default unit vector for V corresponds to 100 km/s. To change the value corresponding to unit velocity vector you should create resource file 'arrows.res' in the working directory with the new value (in km/s).

Available objects are:

ARROWS - Object is called with 3 parameters, defining projection plane (GSM) - 'xy', 'yz' or 'xz'; time step of drawing - N (real step is equal to N*2 min); what to draw - 0 = Magnetic Field (blue) and Plasma Velocity (red), 1 = Magnetic Field only, 2 = Plasma Velocity only.

NOTE:
Xrange and Yrange (in Re) should be defined for this object.

Example

Request file:

002
ARROWS .1 .04 .7 .5  0. 10. 5. 15. 'xz', 3, 0
ARROWS .1 .54 .7 1. -5. 5. 5. 15. 'yz', 3, 0
1996:095:22:00:00
000:06:00:00

Resource file ("arrows.res"):
100.

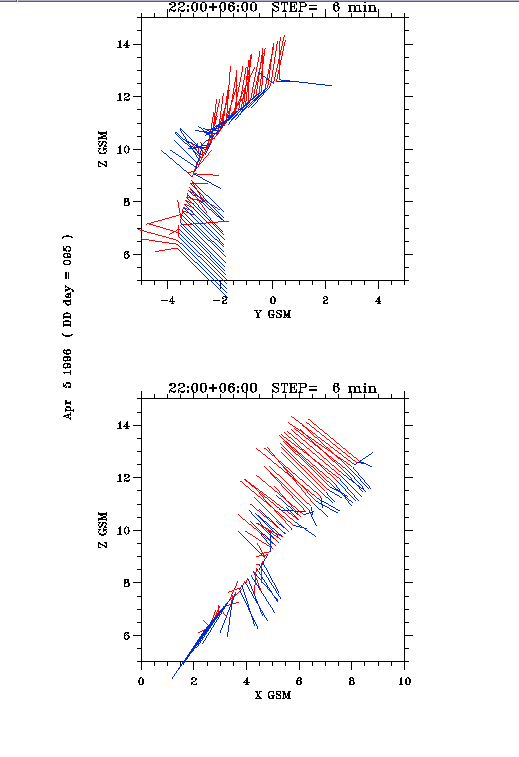

Output:
